FIG. 01 / 05Compact Differential Pressure Transmitter — overall viewProduct photograph
Compact Differential Pressure Transmitter, view 1

03 · Pressure MetersDiffused silicon, differential

Compact Differential Pressure Transmitter

Indiana catalogue ID
II-PT-011
Configuration
Thread-in, two ports

A compact two-port differential transmitter for ducts, small pipelines and filter monitoring.

Principle
Diffused silicon
Output
4–20 mA
Accuracy
0.25 % F.S. (spec card)
Request a Quote Specifications Technical sheet (PDF)

Not sure of the exact model? Request a quote anyway — the team will help select it.

A

Overview

A differential pressure transmitter reports the difference between two pressures — across a filter, an orifice or a duct section. This compact version has both ports on a small inline body with a plug connector, so it fits where a field-housing transmitter would not.

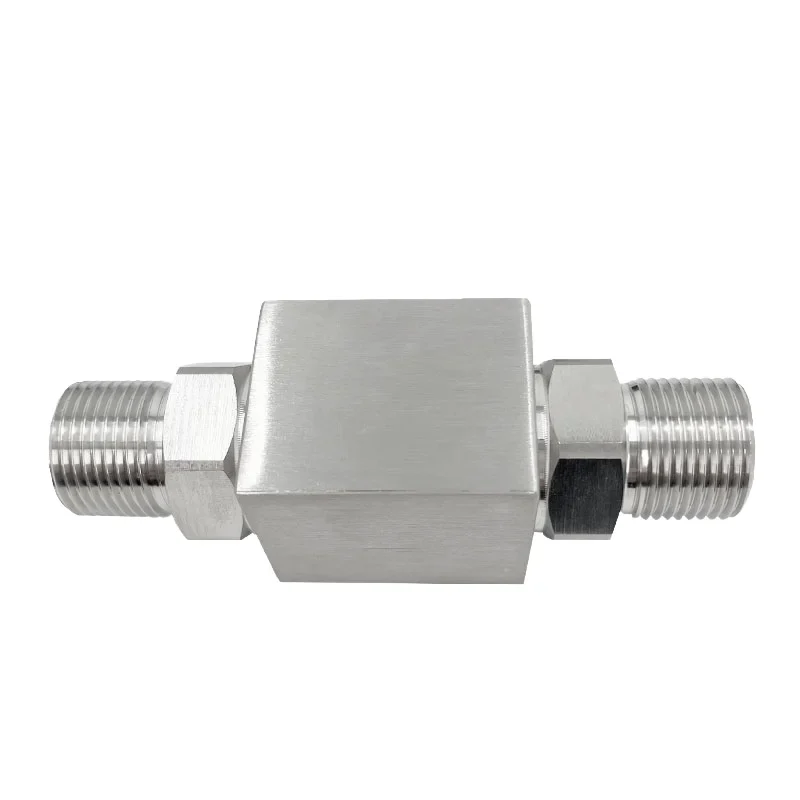

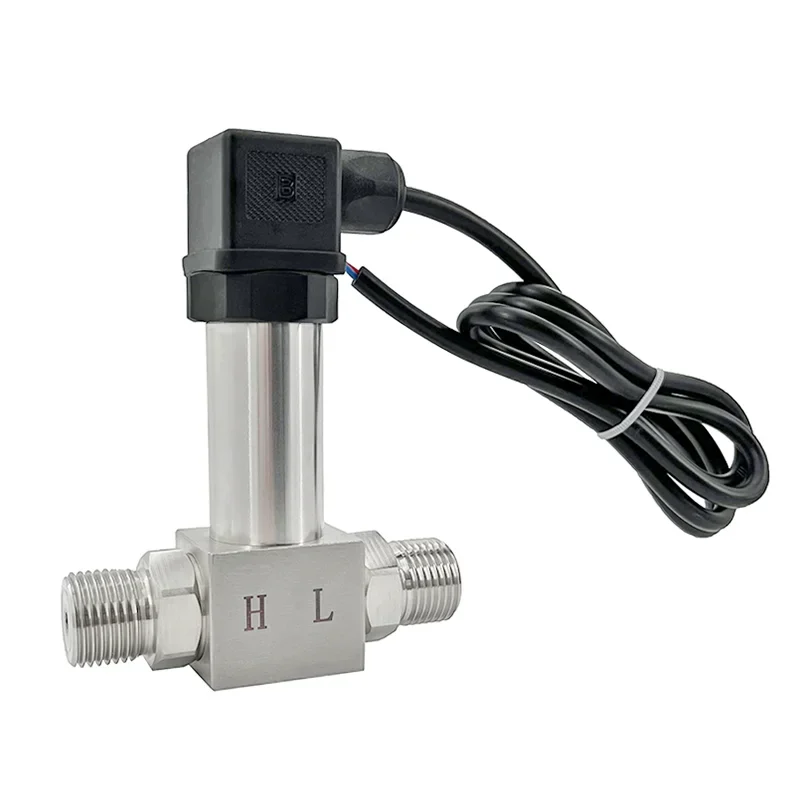

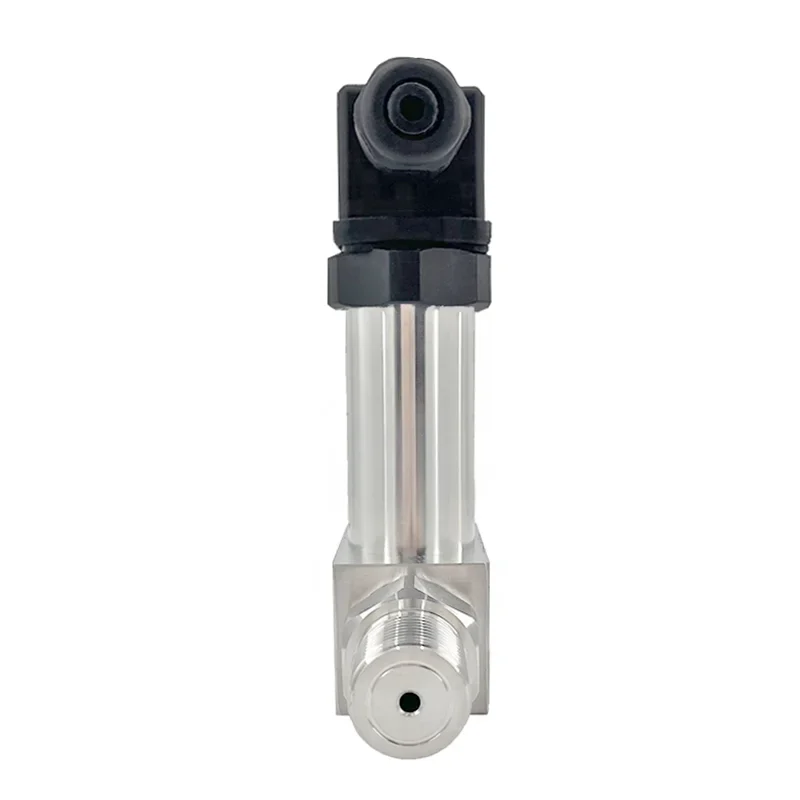

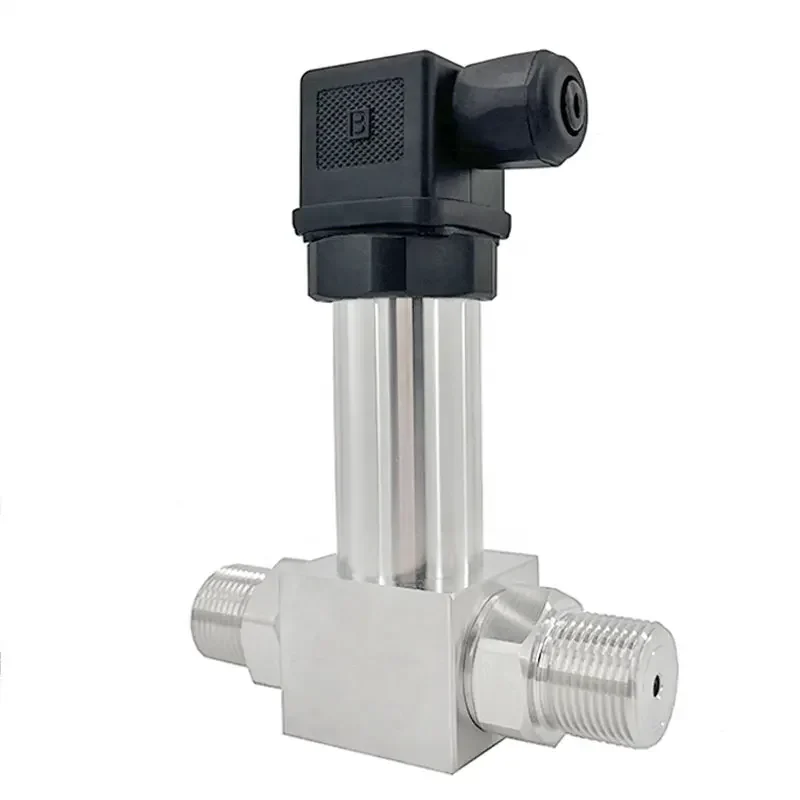

The listings describe a small multifunctional design for machinery, a mini smart version for chemical service, and a version for air ducts and water pipes with a 0–10 bar line rating in the title. The photographs show the two-port body from several angles.

Product features

  • Two threaded ports on an inline body
  • 4–20 mA output
  • Compact — suitable for small pipework and ducts
  • 0–10 bar named in one title

In context

Specified forreal process duty.

  • 01Air ducts and ventilation
  • 02Water pipes
  • 03Filter and strainer monitoring
  • 04Machinery and chemical service

B

Technical specifications

Transcribed from the product documentation. A value that is not shown is not stated in the source, and is confirmed with the quotation.

As stated in the manufacturer listing

As stated in the manufacturer listing
TypeCompact differential pressure transmitter
SensingDiffused silicon
Output (spec card)4–20 mA
Accuracy (spec card)0.25 % F.S.
Range cue0–10 bar (air duct / water pipe title)

Not stated in the listing — confirmed with the quotation

Not stated in the listing — confirmed with the quotation
Differential spanNot stated in the source
Static pressure limitNot stated in the source
Port threadNot stated in the source
Supply voltageNot stated in the source
Wetted materialsNot stated in the source
Protection ratingNot stated in the source

Source · Manufacturer product listing (saved October 2026). Figures are reproduced as listed; spec-card values and title values are shown separately where they differ.

C

Applications and industries

Documented in the product literature, not inferred.

Applications

  • Air ducts and ventilation
  • Water pipes
  • Filter and strainer monitoring
  • Machinery and chemical service

Industries

  • HVAC and building services
  • Chemical
  • Machinery

To specify or quote this, the team needs

  • Pressure type (gauge, absolute, differential) and range
  • Medium and temperature
  • Output and supply required
  • Process connection
  • Quantity
Request a Quote

D

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for Compact Differential Pressure Transmitter.PDF · 0.2 MBFull specificationEvery stated value, variants, open points and ordering information.PDF · 0.2 MB

Request for quotation · II-PT-011

Request a quotation for the Compact Differential Pressure Transmitter

The product, its Indiana catalogue ID are attached to the request automatically. Add quantities and your process conditions — or ask for help selecting the right model.
