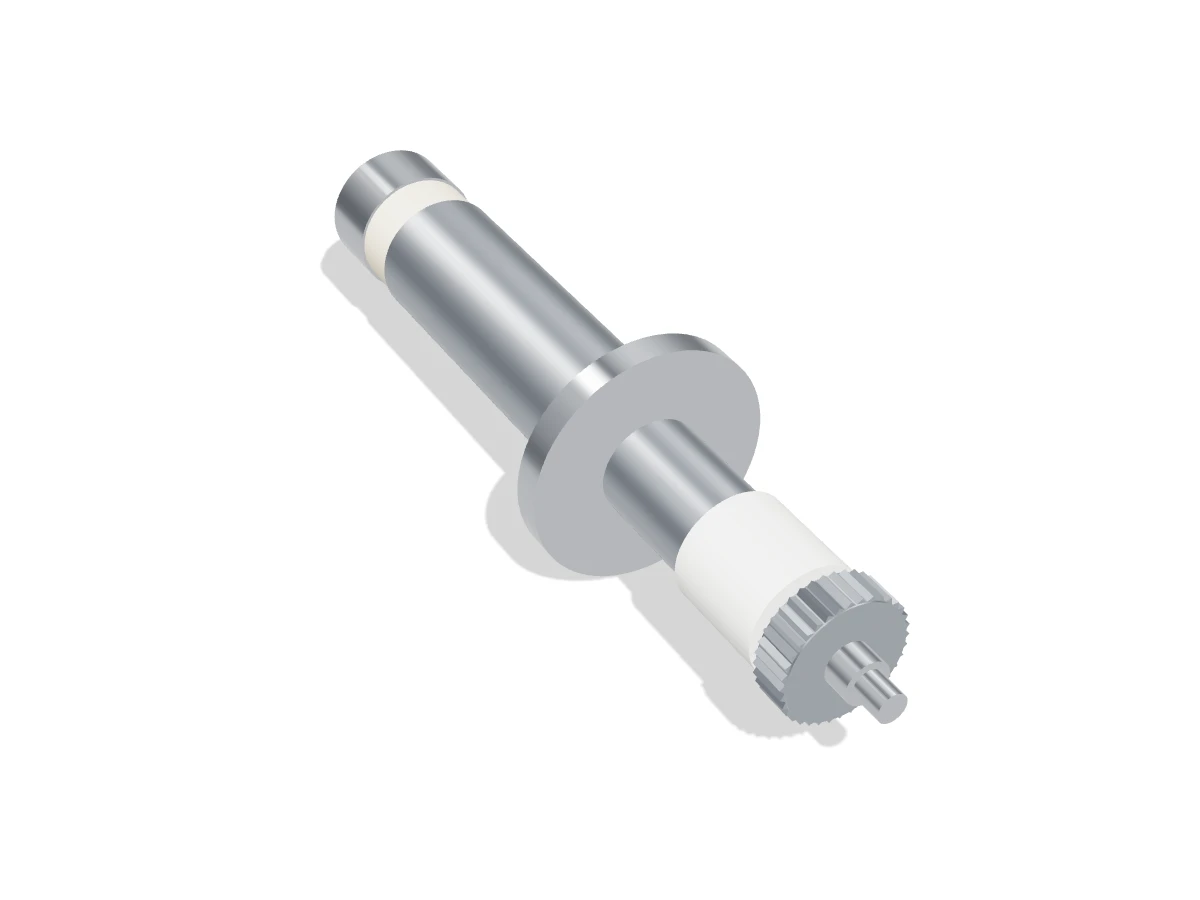

FIG. 01 / 05Clamp-plate electrode, Hydrastep 459600201 form — 3D illustrationIllustration
3D illustration of a clamp-plate conductivity electrode of the Hydrastep 459600201 form

05 · Hydrastep ElectrodesConductivity electrode

Hydrastep 459600201 Replacement Electrode

Indiana catalogue ID
II-HE-007

Replaces

One clamp-plate electrode, three systems: Hydrastep 459600201, Levelstate Type 882 and the BHEL Vision probe.

Connection
Clamp-plate
Length
54 mm tip to flange
Original rating
370 °C · 210 bar
Request a Quote Fit and rating Technical sheet (PDF)

The quotation form opens with this electrode and the parts it replaces already filled in.

A

Overview

The 459600201 is held in its port by a clamp plate rather than a thread or nut. The electrode’s flange sits on a spiral-wound gasket and the plate presses it down, giving a 54 mm tip-to-flange length, a 13.75 mm tip and an original rating of 370 °C and 210 bar.

It is the most widely shared part in this range. The same electrode is listed for Levelstate Type 882 ports and as the probe for BHEL Vision drum level indicators fitted with the clamp-plate water column — a common arrangement on Indian utility boilers. One catalogue entry covers all three.

What identifies this electrode

  • Clamp-plate mounting on a spiral-wound gasket
  • Serves Hydrastep 459600201, Levelstate Type 882 and BHEL Vision
  • 54 mm tip-to-flange, 13.75 mm tip
  • Original rating 370 °C and 210 bar

B

Cross-reference

Every original part, type number and system this electrode is listed against. One physical part, one catalogue ID.

Cross-reference
SystemManufacturerReferenceListed asReplacement group
HydrastepDelta Mobrey459600201Original partDelta Mobrey / Hydrastep
LevelstateLevelstate SystemsType 882Interchangeable with the originalLevelstate
BHEL VisionBHELVision probeInterchangeable with the originalBHEL

Listed in

Delta Mobrey / Hydrastep ReplacementsQuote as a Delta Mobrey / Hydrastep replacement

Listed in

Levelstate ReplacementsQuote as a Levelstate replacement

Listed in

BHEL ReplacementsQuote as a BHEL replacement

System and manufacturer names identify the part being replaced. They are trademarks of their owners; INDIANA INSTRUTECH is not affiliated with them.

In context

Where drum levelis a safety reading.

  • 01Boiler steam drum level indication with conductivity water columns
  • 02Replacement electrode for Hydrastep 459600201 ports
  • 03Replacement electrode for Levelstate Type 882 ports
  • 04Replacement electrode for BHEL Vision Vision probe ports

C

Fit and rating

Interchange depends on the connection, seal, length and tip. These are the published values for the original part; the supplied electrode’s own rating is confirmed on the quotation.

Fit and interchange — original part

Fit and interchange — original part
ConnectionClamp plate
SealSpiral-wound gasket
Length54 mm tip to flange
Tip diameter13.75 mm
Cable connectionKnurled nuts
Water columnClamp-plate water column, as used with BHEL Vision indicators

Construction and rating — original part

Construction and rating — original part
BodyStainless steel
InsulatorBrazed zirconia
Maximum temperature370 °C (698 °F)
Maximum pressure210 bar (3000 psi)

Supplied electrode

Supplied electrode
Indiana catalogue IDII-HE-007
Replacement part numberStated on the quotation
Materials and ratingConfirmed in writing with the quotation

Source · Original-part fit and rating values from published cross-reference datasheets (drumlevel.com, October 2026).

D

Installation

General practice for this mounting. Torque values come from the water-column manufacturer.

  1. 01Isolate the water column from the drum, vent it and allow it to cool before releasing the clamp plate.
  2. 02Withdraw the old electrode and clean the gasket face on the column port.
  3. 03Seat the new electrode with a new gasket; the clamp plate holds the electrode flange against it.
  4. 04Tighten the clamp-plate fasteners evenly, a little at a time, to the column manufacturer’s figure.
  5. 05Reconnect the probe cable and prove the channel in water and in steam before returning to service.

E

Applications and industries

Where this electrode is used.

Applications

  • Boiler steam drum level indication with conductivity water columns
  • Replacement electrode for Hydrastep 459600201 ports
  • Replacement electrode for Levelstate Type 882 ports
  • Replacement electrode for BHEL Vision Vision probe ports

Industries

  • Power generation
  • Process steam

To specify or quote this, the team needs

  • Reference stamped on the electrode being replaced
  • Water column or level system model
  • Number of electrodes
  • Drum operating pressure and temperature
Request a Quote

F

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for Hydrastep 459600201 Replacement Electrode.PDF · 0.2 MBFull specificationEvery stated value, cross-references, open points and ordering information.PDF · 0.3 MB
