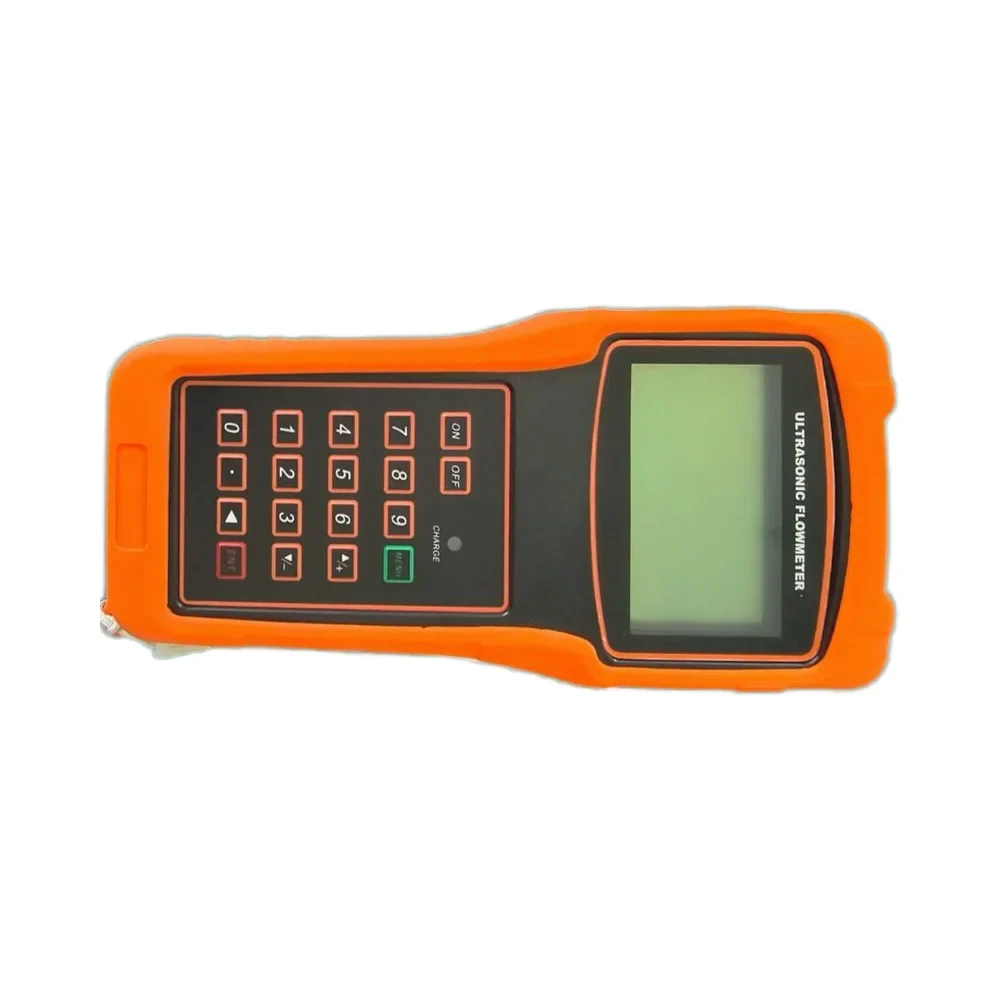

FIG. 01 / 03External-Type Ultrasonic Water Flow Meter — overall viewProduct photograph
External-Type Ultrasonic Water Flow Meter, view 1

01 · Flow MetersUltrasonic, external sensors

External-Type Ultrasonic Water Flow Meter

Indiana catalogue ID
II-FM-004
Configuration
RS485 · data logger

An ultrasonic meter that reads flow through the pipe wall — nothing enters the line, so it can be fitted without cutting it.

Principle
Ultrasonic
Sensors
External, on the pipe
Interface
RS485
Request a Quote Specifications Technical sheet (PDF)

Not sure of the exact model? Request a quote anyway — the team will help select it.

A

Overview

External ultrasonic meters send sound pulses between two sensors strapped to the outside of a pipe and work out flow from the way the liquid changes the journey time. Because the pipe is never opened, the meter can be added to a working line, moved between measuring points, or used to verify an existing meter.

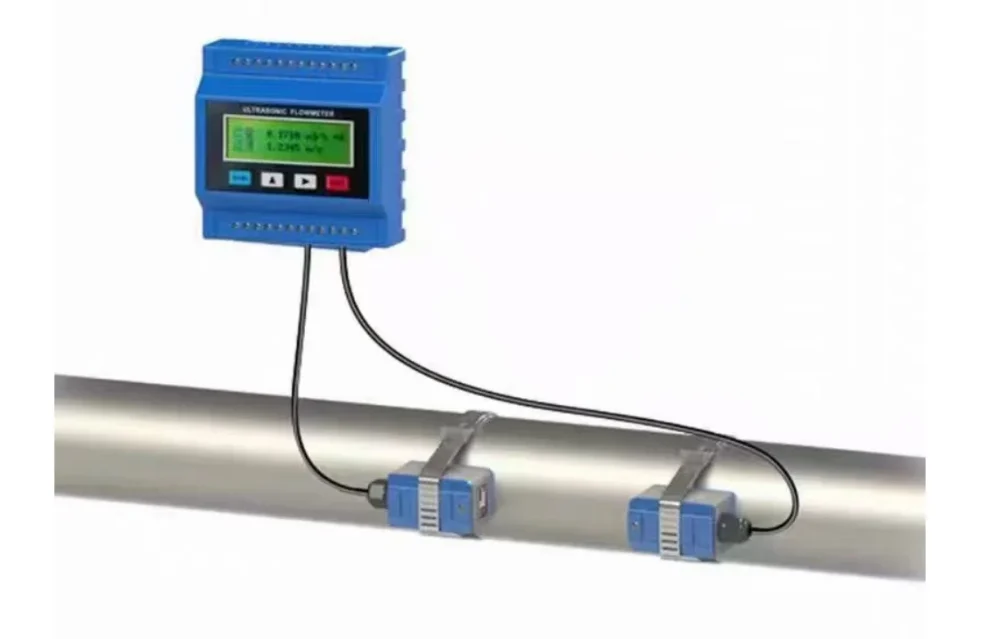

This family is listed with a digital LCD display, an RS485 sensor interface and a data logger, and the listing names hot water and fuel oil among the liquids. The photographs show the transmitter with its pair of sensors on a pipe spool and a typical on-pipe arrangement.

Product features

  • Sensors mount on the pipe exterior — no cutting or shutdown to fit
  • Digital LCD display
  • RS485 interface and data logger named in the listing
  • Listed for hot water and fuel oil, and as OEM-customisable

In context

Specified forreal process duty.

  • 01Hot-water pipelines
  • 02Fuel-oil lines
  • 03Verification of an installed meter
  • 04Temporary or portable flow checks

B

Technical specifications

Transcribed from the product documentation. A value that is not shown is not stated in the source, and is confirmed with the quotation.

As stated in the manufacturer listing

As stated in the manufacturer listing
PrincipleUltrasonic flow measurement
Sensor mountingExternal ("external type" in the listing); the listing photographs show sensors clamped on a pipe
DisplayDigital LCD
InterfaceRS485 sensor interface
LoggingData logger
Media namedHot water, fuel oil
CustomisationOEM-customisable

Not stated in the listing — confirmed with the quotation

Not stated in the listing — confirmed with the quotation
Pipe size range and pipe materialsNot stated in the source
Flow range and velocity limitsNot stated in the source
AccuracyNot stated in the source
Power supply and battery lifeNot stated in the source
Operating temperatureNot stated in the source
Protection ratingNot stated in the source

Source · Manufacturer product listing (saved October 2026). Figures are reproduced as listed; spec-card values and title values are shown separately where they differ.

C

Applications and industries

Documented in the product literature, not inferred.

Applications

  • Hot-water pipelines
  • Fuel-oil lines
  • Verification of an installed meter
  • Temporary or portable flow checks

Industries

  • Water and wastewater
  • HVAC and building services
  • Petroleum

To specify or quote this, the team needs

  • Medium and its temperature
  • Line size (DN) and pipe material
  • Flow range
  • Output and power supply required
  • Quantity
Request a Quote

D

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for External-Type Ultrasonic Water Flow Meter.PDF · 0.2 MBFull specificationEvery stated value, variants, open points and ordering information.PDF · 0.2 MB

Request for quotation · II-FM-004

Request a quotation for the External-Type Ultrasonic Water Flow Meter

The product, its Indiana catalogue ID are attached to the request automatically. Add quantities and your process conditions — or ask for help selecting the right model.
