FIG. 01 / 05Electromagnetic Flow Meter — overall viewProduct photograph
Electromagnetic Flow Meter, view 1

01 · Flow MetersElectromagnetic

Electromagnetic Flow Meter

Indiana catalogue ID
II-FM-005
Configuration
Compact and remote converter

Obstruction-free flow measurement for conductive liquids, offered here in three listed configurations.

Principle
Electromagnetic
Accuracy
0.5 % F.S. (spec card)
Pressure
1.6 MPa (spec card)
Request a Quote Specifications Technical sheet (PDF)

Not sure of the exact model? Request a quote anyway — the team will help select it.

A

Overview

An electromagnetic meter has no moving parts and nothing protruding into the flow: a magnetic field is applied across the pipe and the voltage induced by the moving conductive liquid is proportional to its velocity. That makes it a common choice for water, wastewater and other conductive liquids where pressure loss and wear matter.

The listings in this family show a compact meter with the converter on the tube, a version with a separate converter box, and a DN50 meter with a choice of outputs. They differ in protection rating and signal options, so each is set out below instead of being merged into one specification.

Product features

  • No moving parts and an open measuring tube
  • LCD display on every listed version
  • 4–20 mA, RS485 and pulse outputs across the listed versions
  • Stainless-steel construction named on two of the three listings

In context

Specified forreal process duty.

  • 01Water and wastewater lines
  • 02Petroleum and oil lines
  • 03Process liquids that conduct electricity

B

Variants and model selection

3 documented configurations. Open one to see its specification.

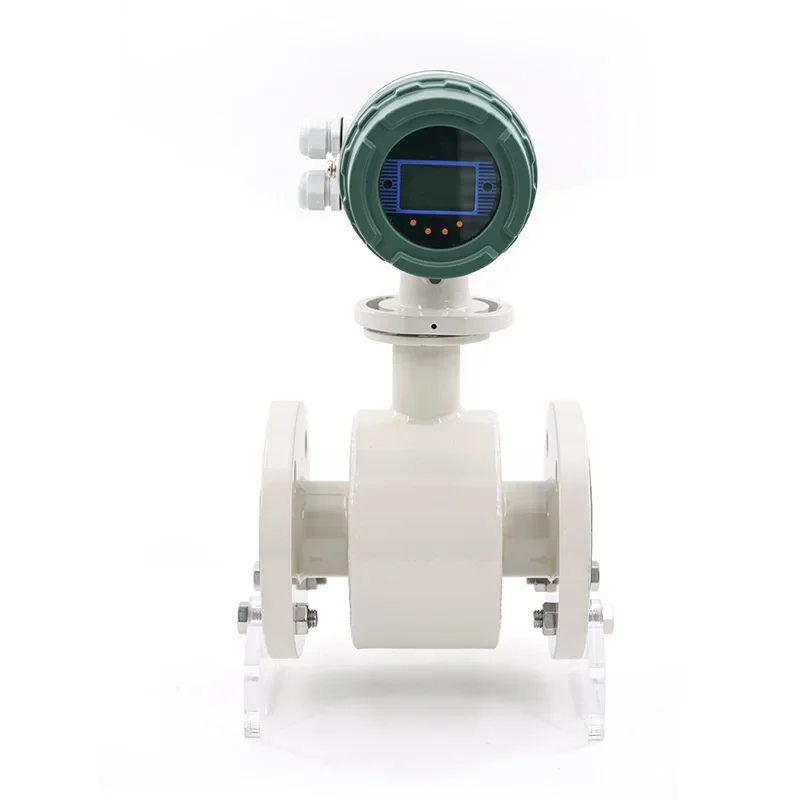

IP68 · RS485Compact meter, IP68, RS485, LCDListed for petroleum and water duties; converter on the measuring tube.
IP68 · RS485 — Compact meter, IP68, RS485, LCD
ProtectionIP68
OutputRS485
DisplayLCD
Accuracy (spec card)0.5 % F.S.
Pressure (spec card)1.6 MPa
Request a quote for this variant

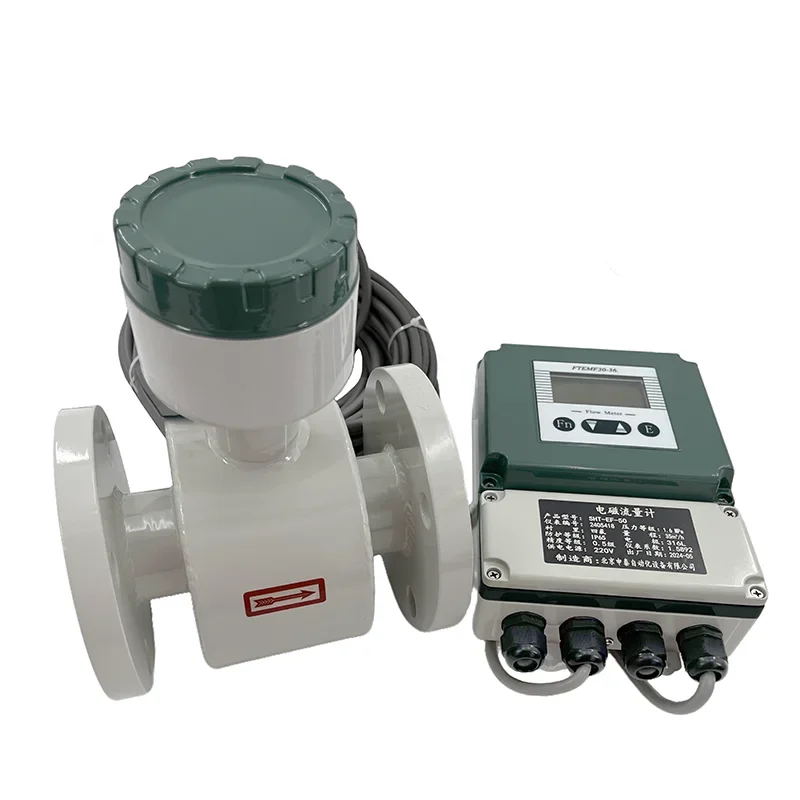

IP65 · 4–20 mALow-cost meter, IP65, 4–20 mA, LCDListed for water; the photographs show a remote converter box beside the meter.
IP65 · 4–20 mA — Low-cost meter, IP65, 4–20 mA, LCD
ProtectionIP65
Output4–20 mA
DisplayLCD
BodyStainless steel
Request a quote for this variant

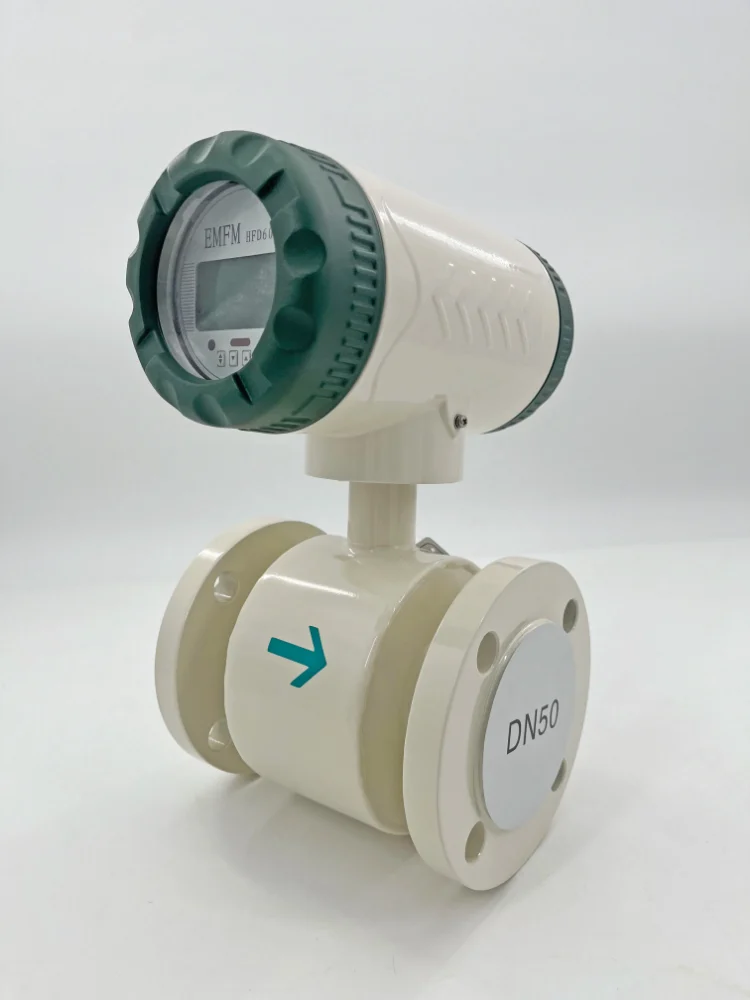

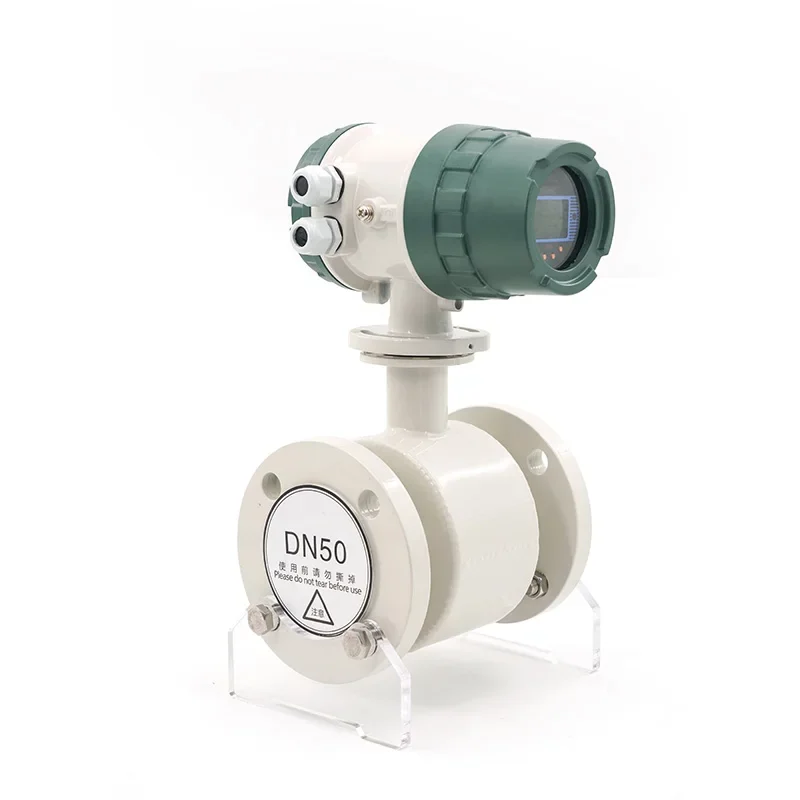

DN50DN50 meter with 4–20 mA, RS485 and pulseListed for water and oil.
DN50 — DN50 meter with 4–20 mA, RS485 and pulse
Nominal sizeDN50
Outputs4–20 mA, RS485, pulse
BodyStainless steel
Accuracy (spec card)0.5 % F.S.
Pressure (spec card)1.6 MPa
Request a quote for this variant

C

Technical specifications

Transcribed from the product documentation. A value that is not shown is not stated in the source, and is confirmed with the quotation.

As stated in the manufacturer listing

As stated in the manufacturer listing
PrincipleElectromagnetic flow measurement
DisplayLCD
Accuracy (spec card)0.5 % F.S.
Pressure (spec card)1.6 MPa
Outputs across listings4–20 mA, RS485, pulse
Protection across listingsIP65 (one listing), IP68 (one listing)

Not stated in the listing — confirmed with the quotation

Not stated in the listing — confirmed with the quotation
Sizes other than DN50Not stated in the source
Flow rangeNot stated in the source
Liner and electrode materialsNot stated in the source
Minimum liquid conductivityNot stated in the source
Power supplyNot stated in the source
Temperature limitsNot stated in the source

Source · Manufacturer product listing (saved October 2026). Figures are reproduced as listed; spec-card values and title values are shown separately where they differ.

D

Applications and industries

Documented in the product literature, not inferred.

Applications

  • Water and wastewater lines
  • Petroleum and oil lines
  • Process liquids that conduct electricity

Industries

  • Water and wastewater
  • Petroleum
  • Chemical

To specify or quote this, the team needs

  • Medium and its temperature
  • Line size (DN) and pipe material
  • Flow range
  • Output and power supply required
  • Quantity
Request a Quote

E

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for Electromagnetic Flow Meter.PDF · 0.2 MBFull specificationEvery stated value, variants, open points and ordering information.PDF · 0.2 MB

Request for quotation · II-FM-005

Request a quotation for the Electromagnetic Flow Meter

The product, its Indiana catalogue ID are attached to the request automatically. Add quantities and your process conditions — or ask for help selecting the right model.

Request a Quote Ask a question
