Digital Turbine Flow Meter

Indiana catalogue ID: II-FM-007
Configuration: Stainless steel · 4–20 mA

A rotor turns at a speed that follows the flow — the oldest and most direct way to total clean liquid and gas flow, here in a digital stainless-steel form.

Principle: Turbine
Output: 4–20 mA (+ HART)
Body: 304 stainless steel

Request a Quote Specifications Technical sheet (PDF)

Not sure of the exact model? Request a quote anyway — the team will help select it.

Overview

A turbine meter places a free-spinning rotor in the flow. Its rotation is picked up electronically and is proportional to velocity, so the meter reports flow rate and a running total with good repeatability on clean, low-viscosity fluids.

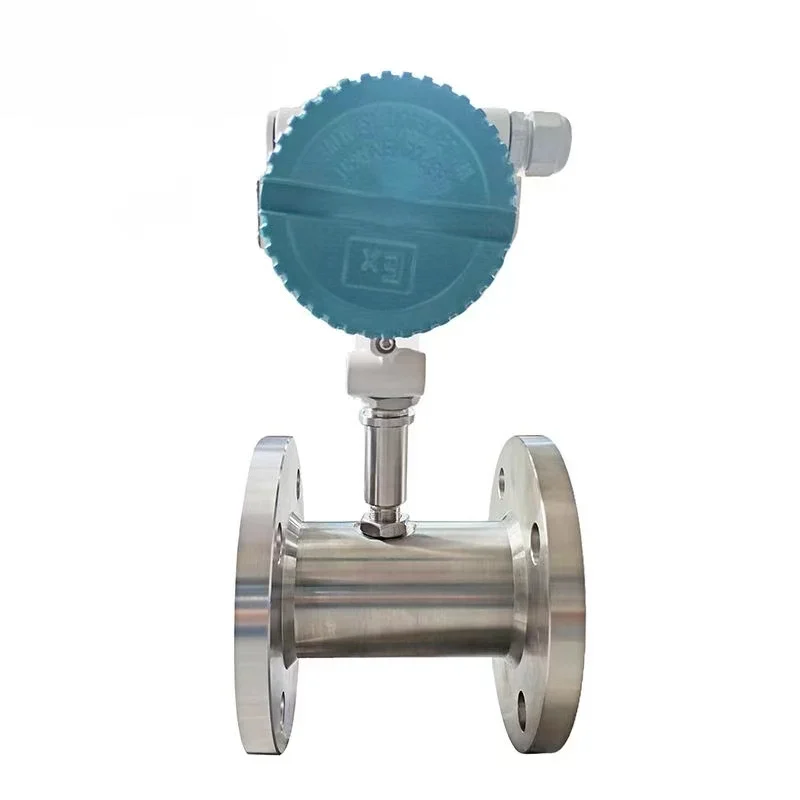

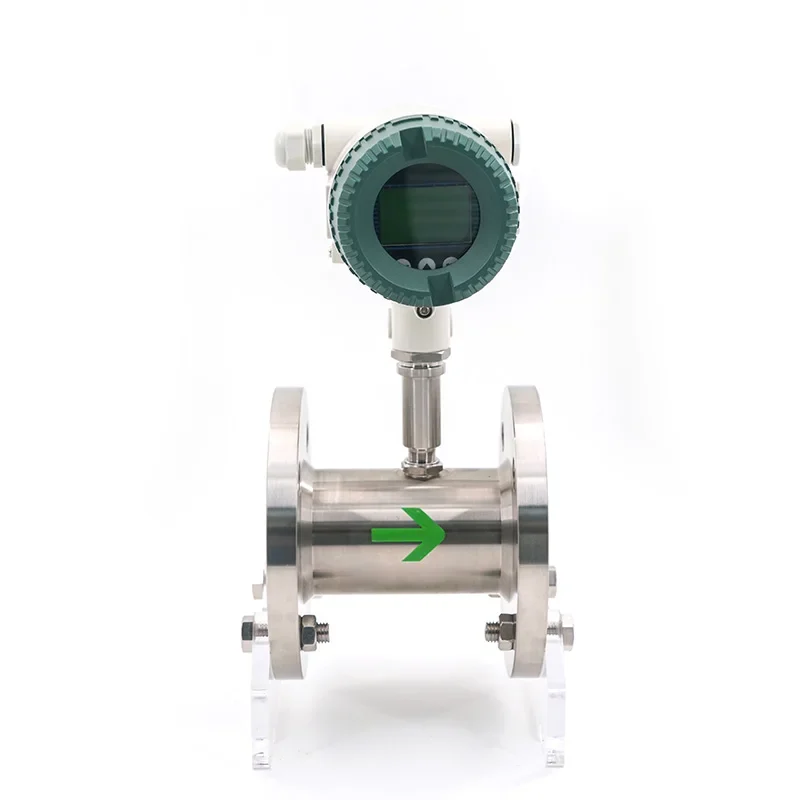

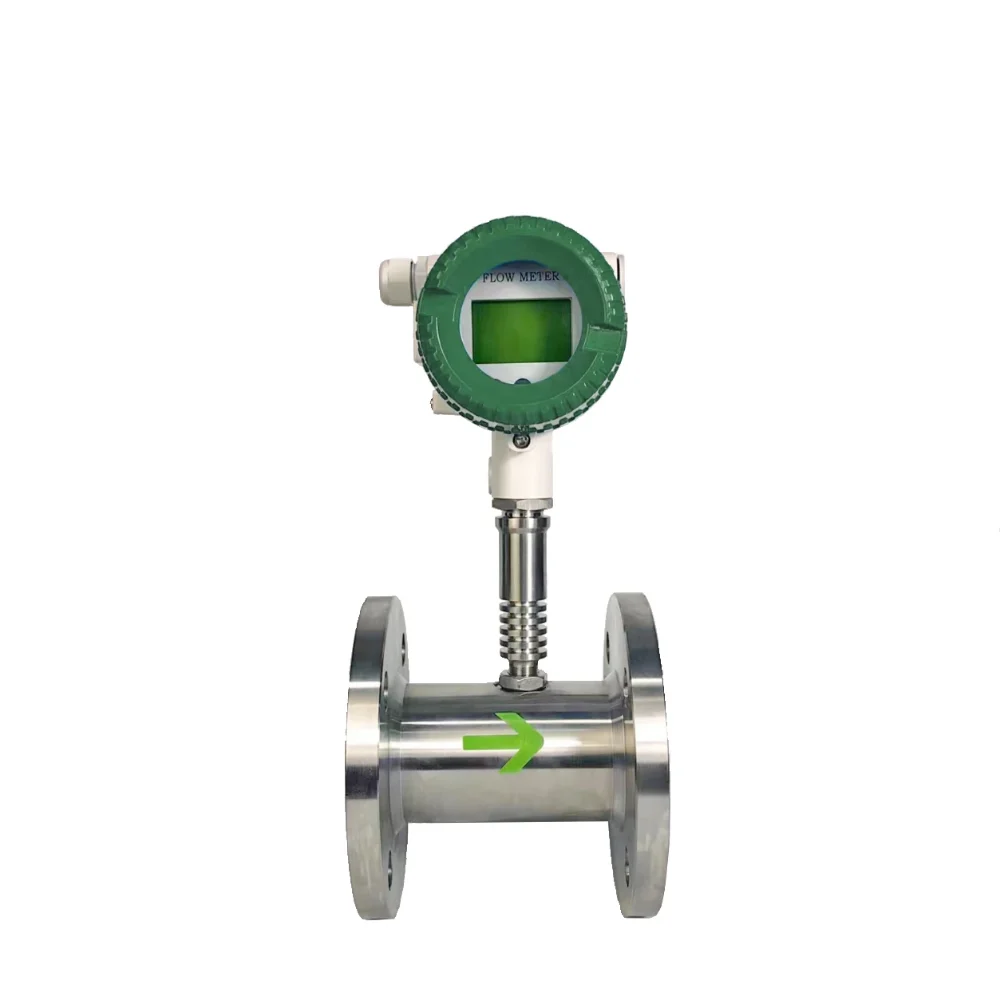

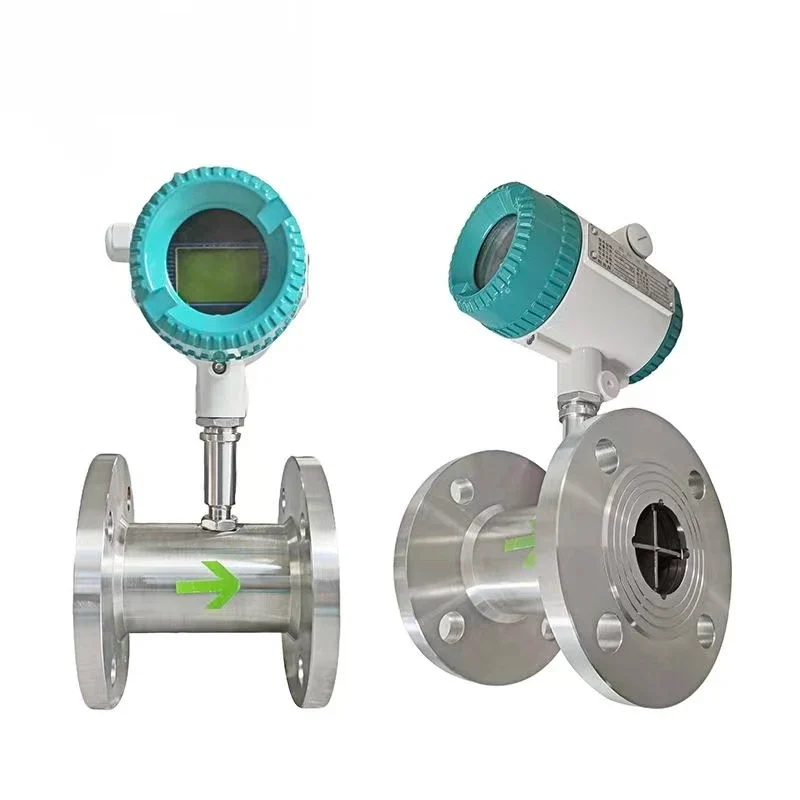

Five listings are grouped here: a 304 stainless meter with 4–20 mA and HART, an IP65 version for water, air and shipbuilding service, an IP67 liquid meter with custom diameters, an acid- and alkali-resistant version, and a magnetic-pickup stainless meter. The listing photographs show flanged inline meters with the converter head on top.

Product features

LCD display on the listed versions
4–20 mA output, with HART named on two listings
Custom diameters offered on one listing
An acid- and alkali-resistant version is listed

In context

Specified forreal process duty.

01Clean water and other low-viscosity liquids
02Air and gas
03Marine and shipbuilding systems
04Chemical liquids (acid- and alkali-resistant version)

DENSE MANIFOLD OF STEEL PROCESS PIPES AND VALVES, IN BLACK AND WHITE · ILLUSTRATIVE ENVIRONMENT

Variants and model selection

5 documented configurations. Open one to see its specification.

304SS · HART304 stainless, 4–20 mA + HARTListed as an air flow meter.

304SS · HART — 304 stainless, 4–20 mA + HART
Body	304 stainless steel
Output	4–20 mA + HART

Request a quote for this variant

IP65 · 0.2 %IP65, 4–20 mA + HARTListed for water, air and shipbuilding.

IP65 · 0.2 % — IP65, 4–20 mA + HART
Protection	IP65
Output	4–20 mA + HART
Accuracy (title)	0.2 % F.S.
Accuracy (spec card)	1 % F.S.

Request a quote for this variant

IP67 · custom DNIP67 liquid meter, custom diameterListed for liquids, with an LCD.

IP67 · custom DN — IP67 liquid meter, custom diameter
Protection	IP67
Body	Stainless steel
Diameter	Custom diameter offered

Request a quote for this variant

Acid / alkaliChemical-resistant versionListed for acids, alkalis, air, water and oil.

Acid / alkali — Chemical-resistant version
Body	Stainless steel
Display	LCD

Request a quote for this variant

MagneticMagnetic stainless-steel digital turbineOEM-customisable; the listing title also names liquids, water, air and oil.

Magnetic — Magnetic stainless-steel digital turbine
Body	Stainless steel

Request a quote for this variant

Technical specifications

Transcribed from the product documentation. A value that is not shown is not stated in the source, and is confirmed with the quotation.

As stated in the manufacturer listing

As stated in the manufacturer listing
Principle	Turbine flow meter
Display	LCD
Output (spec card)	4–20 mA
Accuracy	1 % F.S. on the spec card; one listing title states 0.2 % F.S. — to be confirmed
Body	304 stainless steel (one listing); stainless steel on the others
Protection	IP65 (one listing), IP67 (one listing)

Not stated in the listing — confirmed with the quotation

Not stated in the listing — confirmed with the quotation
Nominal sizes and flow ranges	Not stated in the source
Process connection and flange standard	Not stated in the source
Viscosity limits	Not stated in the source
Power supply	Not stated in the source
Temperature and pressure limits	Not stated in the source

Source · Manufacturer product listing (saved October 2026). Figures are reproduced as listed; spec-card values and title values are shown separately where they differ.

Applications and industries

Documented in the product literature, not inferred.

Applications

Clean water and other low-viscosity liquids
Air and gas
Marine and shipbuilding systems
Chemical liquids (acid- and alkali-resistant version)

Industries

Water and wastewater
Chemical
Shipbuilding
Petroleum

To specify or quote this, the team needs

Medium and its temperature
Line size (DN) and pipe material
Flow range
Output and power supply required
Quantity

Request a Quote

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for Digital Turbine Flow Meter.PDF · 0.2 MB Full specificationEvery stated value, variants, open points and ordering information.PDF · 0.2 MB

Request for quotation · II-FM-007

Request a quotation for the Digital Turbine Flow Meter

The product, its Indiana catalogue ID are attached to the request automatically. Add quantities and your process conditions — or ask for help selecting the right model.

Request a Quote Ask a question
