Vortex Flow Meter

Indiana catalogue ID: II-FM-008
Configuration: Gas, air and steam

A bluff body in the flow sheds vortices at a rate set by velocity — a robust principle for gas, compressed air and steam.

Principle: Vortex
Flow velocity: 0.01–10 m/s (two listings)
Output: 4–20 mA · RS232

Request a Quote Specifications Technical sheet (PDF)

Not sure of the exact model? Request a quote anyway — the team will help select it.

Overview

Vortex meters measure the frequency of vortices shed from a bluff body placed in the pipe. With no moving parts they tolerate gases and steam well, which is why the listings in this family concentrate on air, nitrogen, natural gas and steam.

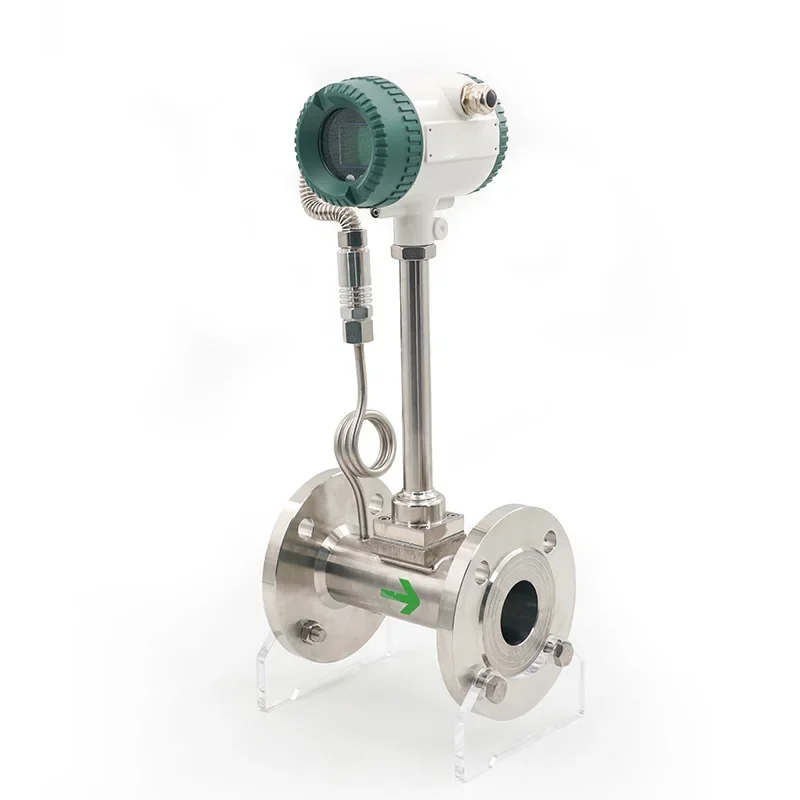

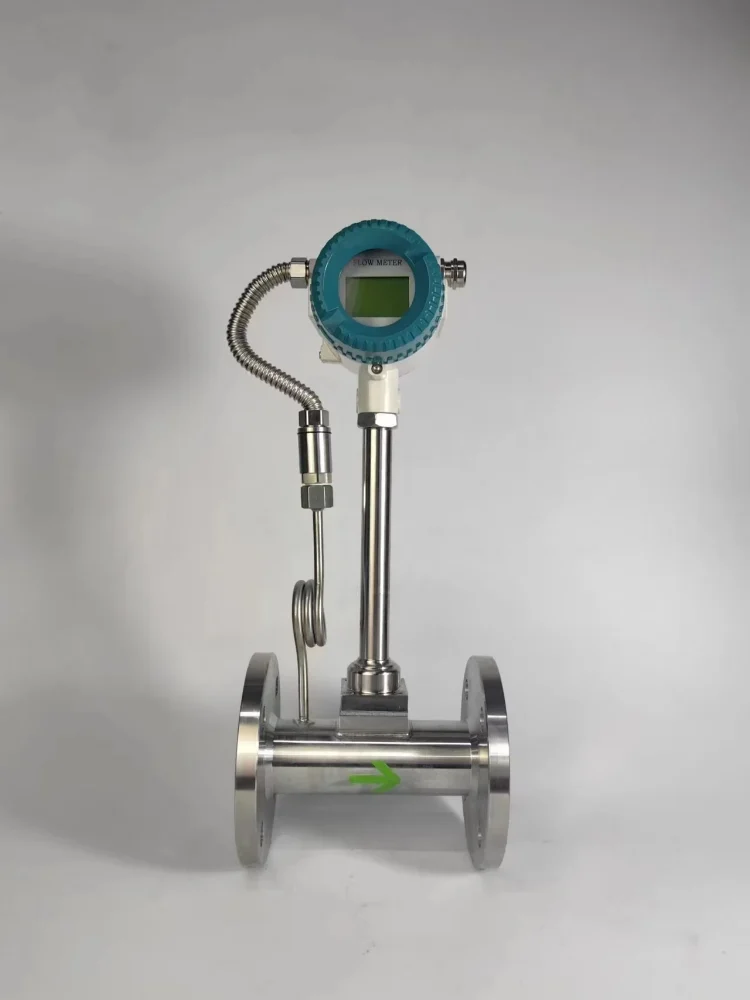

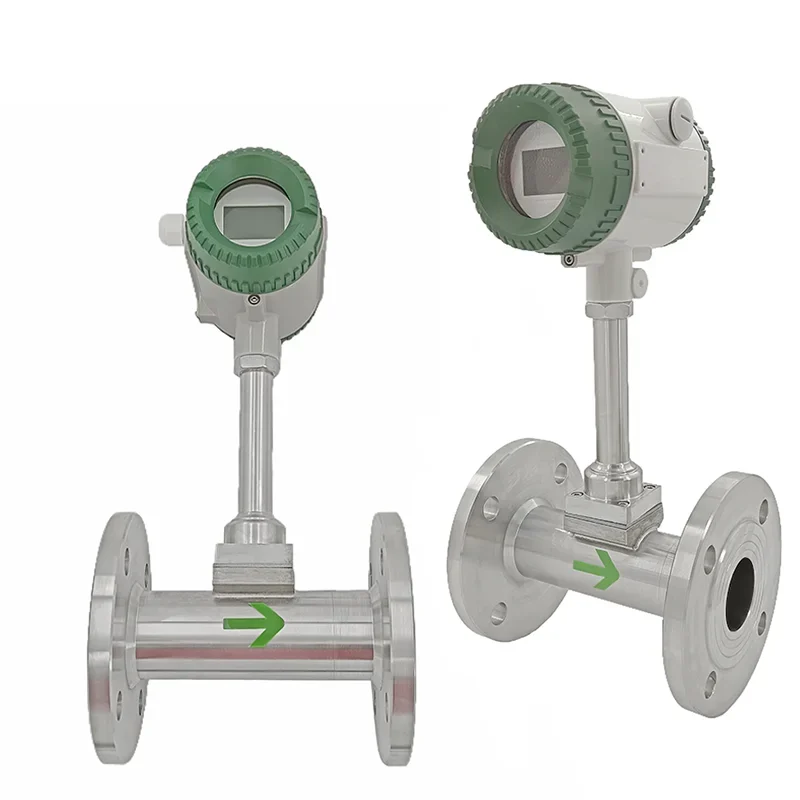

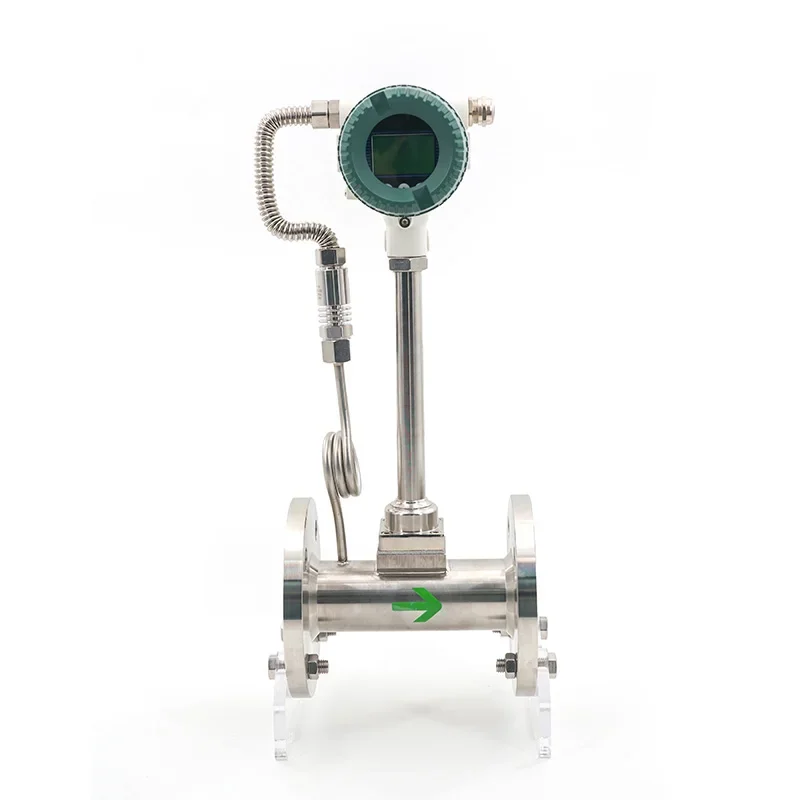

Four listings are grouped: a mini vortex meter with RS232, a stainless-steel RS232 meter named for natural gas, a flanged digital meter for gas, water and air, and a 4–20 mA meter for compressed air, nitrogen and steam. The photographs show flanged inline meters and a mounting-hardware kit.

Product features

No moving parts in the flow
LCD display on the listed versions
RS232 and 4–20 mA outputs across the listings
Compressed air, nitrogen, natural gas and steam named as media

In context

Specified forreal process duty.

01Compressed air and nitrogen
02Natural gas
03Saturated and superheated steam
04Gas and water measurement

DENSE MANIFOLD OF STEEL PROCESS PIPES AND VALVES, IN BLACK AND WHITE · ILLUSTRATIVE ENVIRONMENT

Variants and model selection

4 documented configurations. Open one to see its specification.

RS232 · miniMini vortex meter, LCD, RS232Velocity span 0.01–10 m/s.

RS232 · mini — Mini vortex meter, LCD, RS232
Output	RS232
Display	LCD
Velocity	0.01–10 m/s

Request a quote for this variant

RS232 · 304Stainless-steel vortex meterListed for natural gas.

RS232 · 304 — Stainless-steel vortex meter
Output	RS232
Body	Stainless steel
Velocity	0.01–10 m/s
Accuracy (title)	0.2 % F.S.

Request a quote for this variant

FlangedFlanged digital vortex meterListed for gas, water and air.

Flanged — Flanged digital vortex meter
Connection	Flanged
Display	Digital
Accuracy (title)	0.5 %

Request a quote for this variant

4–20 mASteam and compressed-air meterListed for compressed air, nitrogen, saturated and superheated steam.

4–20 mA — Steam and compressed-air meter
Output	4–20 mA
Accuracy (spec card)	1 % F.S.

Request a quote for this variant

Technical specifications

Transcribed from the product documentation. A value that is not shown is not stated in the source, and is confirmed with the quotation.

As stated in the manufacturer listing

As stated in the manufacturer listing
Principle	Vortex flow meter
Flow velocity	0.01 m/s to 10 m/s (two listing titles)
Outputs	RS232 (two listings); 4–20 mA (spec card and one listing)
Accuracy	1 % F.S. on the spec card; titles state 0.2 % F.S. and 0.5 % — to be confirmed
Connection	Flanged (one listing)
Body	Stainless steel (one listing)

Not stated in the listing — confirmed with the quotation

Not stated in the listing — confirmed with the quotation
Nominal sizes and flow ranges	Not stated in the source
Temperature and pressure limits	Not stated in the source
Process connection standard	Not stated in the source
Power supply	Not stated in the source
Protection rating	Not stated in the source

Source · Manufacturer product listing (saved October 2026). Figures are reproduced as listed; spec-card values and title values are shown separately where they differ.

Applications and industries

Documented in the product literature, not inferred.

Applications

Compressed air and nitrogen
Natural gas
Saturated and superheated steam
Gas and water measurement

Industries

Power generation
Process steam
Chemical
Natural gas

To specify or quote this, the team needs

Medium and its temperature
Line size (DN) and pipe material
Flow range
Output and power supply required
Quantity

Request a Quote

Downloads

Branded PDFs generated from this page's own data — nothing in them that isn't on the site.

Technical sheetOverview, key values, gallery and applications — the selling document for Vortex Flow Meter.PDF · 0.2 MB Full specificationEvery stated value, variants, open points and ordering information.PDF · 0.2 MB
